Automotive Air Outlet of Injection Mold Parts with ABS Material in 2 cavities Mold
Specifications:
Injection molding
Design Guideline
Injection molding is used for manufacturing a wide variety of parts, from small components like AAA battery boxes to large components like truck body panels. Once a component is designed, a mold is made and precision machined to form the features of the desired part. The injection molding takes place when a thermoplastic or thermoset plastic material is fed into a heated barrel, mixed, and forced into the metal mold cavity where it cools and hardens before being removed.
TOOLING
Mold and die are used interchangeably to describe the tooling applied to produce plastic parts. They are typically constructed from pre-hardened steel, hardened steel, aluminum, and/or beryllium-copper alloy. Of these materials, hardened steel molds are the most expensive to make, but offer the user a long lifespan, which offsets the cost per part by spreading it over a larger quantity. For low volumes or large components, pre-hardened steel molds provide a less wear-resistant and less expensive option.
The most economical molds are produced out of aluminum. When designed and built using CNC machines or Electrical Discharge Machining processes, these molds can economically produce tens of thousands to hundreds of thousands of parts. Note that beryllium copper is often used in areas of the mold that require fast heat removal or places that see the most shear heat generated.
INJECTION MOLDING
The injection molding process uses a granular plastic that is gravity fed from a hopper. A screw-type plunger forces the material into a heated chamber, called a barrel, where it is melted. The plunger continues to advance, pushing the polymer through a nozzle at the end of the barrel that is pressed against the mold. The plastic enters the mold cavity through a gate and runner system. After the cavity is filled, a holding pressure is maintained to compensate for material shrinkage as it cools. At this same time, the screw turns so that the next shot is moved into a ready position, and the barrel retracts as the next shot is heated. Because the mold is kept cold, the plastic solidifies soon after the mold is filled. Once the part inside the mold cools completely, the mold opens, and the part is ejected. The next injection molding cycle starts the moment the mold closes and the polymer is injected into the mold cavity.
INJECTION MOLDING MATERIALS
Materials Selection: Many types of thermoplastic materials are available. Selection depends on the specific application. The chart below shows some of the most common materials being used.
Today, as we drive our automobiles, a great many of us, can enjoy the same comfort levels that we are accustomed to at home and at work. With the push of a button or the slide of a lever, we make the seamless transition from heating to cooling and back again without ever wondering how this change occurs. That is, unless something goes away.

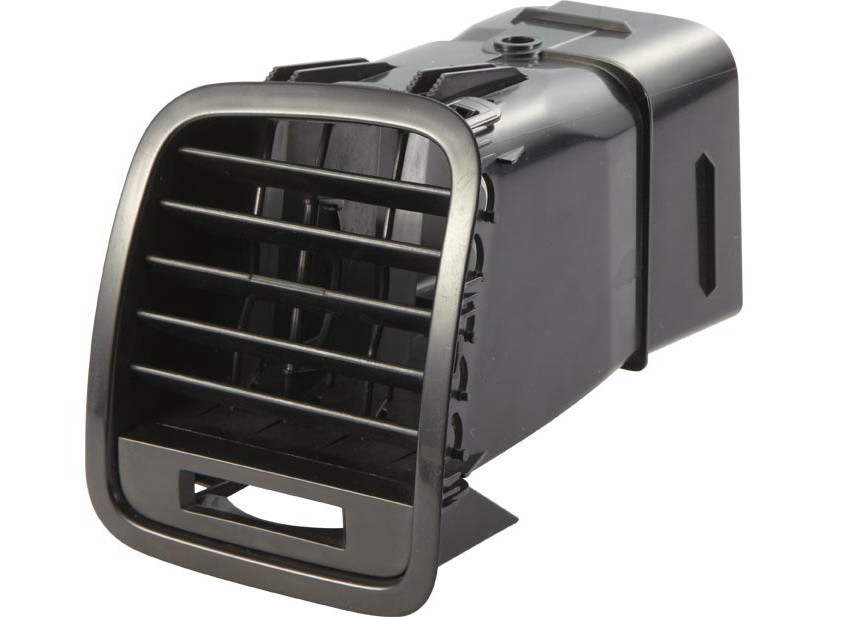

This is car air outlet or air window.We built this mold with 2 cavities and the raw material of plastic parts is ABS.
Forwa can provide the service from design to production,which we have 24 injection machine from 30T to 250T.
Welcome to order injection mold and production order.
